Contact us for a Quote

Rivet MACHINES

Adtech Model R-2000

Rivet Diameter (max inches) Semi-Tabular : 0.25. Rivet Length (max inches) : 0.75. Throat Depth (inches) : 8. Stroke (inches) : 3. Dimensions (W x L x H inches) : 22 x 29 x 62. Weight (pounds) : 675

Milford Model

Rivet Diameter (max inches) Semi-Tabular : 0.187. Rivet Length (max inches) : 1. Throat Depth (inches) : 12. Stroke (inches) : 3.5. Dimensions (W x L x H inches) : 27 x 33 x 70.5. Weight (pounds) : 690

National Model 500

Rivet Capacity : 0.156" x 0.750". Throat Depth : 10". Stroke : 2.375" Std., 3" or 1.875" avail. Hopper: Rotary. Cycle Time : 1/3 second. Upset Force : 2400 lb. Weight: 420 lb.

National Model 600

Rivet Capacity : 7.5" Hopper : 0.188" x 0.750" & *10" Hopper : 0.188" x 1.375" avail. Throat Depth : 12". Stroke : 2.375" Std., 3.375" or 1.875" avail. Hopper: Rotary. Cycle Time : 1/3 second. Upset Force : 3400 lb. Weight: 650 lb.

National Model 500b

Rivet Capacity : 0.156" x 0.750". Throat Depth : 10". Stroke : 2.375" Std., 3" or 1.875" avail. Hopper: Rotary. Cycle Time : 1/3 second. Upset Force : 2400 lb. Weight: 300 lb.

National Model 616

Max Dia. of Rivet 4.7498 mm Throat 406.4 mm Dimensions 23" x 39" x 67" Weight 680 (LBS)

National Model 816

Max Rivet Capacity: 3/4" diameter, up to 1.375" long semi tubular Stroke: 2.375" Throat: 12.00" Motor: 1/2 HP, 1140 RPM, single phase Work Height with Pedestal: 66-5/8" Trip: Electric solenoid/roller clutch Floor Space (L x W): 35" x 24" Power Requirements: 120 volt Weight with Pedestal: 725 lbs.

Interior painting

Max Rivet Capacity: 0.375" diameter, up to 1.375" long. Stroke: 3-3/8" Throat: 12.00". Weight: 1250 lbs.

National Model 816

Max Rivet Capacity: 1/4" diameter, up to 1.375" long semi tubular Stroke: 2.375" Throat: 16.00" Motor: 1/2 HP, 1140 RPM Work Height with Pedestal: 66-5/8" Trip: Electric solenoid/roller clutch Floor Space (L x W): 38" x 24" Power Requirements: 120 volt Weight with Pedestal: 760 lbs.

Chicago 990

Capacity - Diameter 0.188 Inch Max Tubular Rivet Capacity - Length 1 3/8 Inch Throat Depth 12 Inch Stroke 3 1/4 to 4 1/2 Inch Hopper 10 Inch Motor 1/3 HP, 1140 rpm Mounting Type Floor Anvil Height 42 Inch Flywheel Speed 175 rpm Overall Height 70 1/2 Inch Floor Space 22 x 38 Inch Net Weight 600 lb

Chicago 912

Rivet Capacity: up to 3'16" dia. x 5/s" length, up to 15/,G" length available Throat Depth: 12" Stroke: 2 ½" std., 2 ¼" available Rotary Hopper: 7" std., 8" & 10" available Anvil Height: 42" Flywheel Speed: 175 rpm Motor: 1 h hp. 1140 rpm Overall Height: 65" Floor Space: 18" x 35" Net Weight: 555 lbs.

Milford Model 64

Rivet Diameter (max inches) Semi-Tabular : 0.156. Rivet Length (max inches) : 0.75. Throat Depth (inches) : 6.25. Stroke (inches) : 2. Dimensions (W x L x H inches) : 17.125 x 23.5 x 28.5. Weight (pounds) : 235

Model 2600F

Rivet Capacity : 0.186" x 0.625". Throat Depth : 8". Stroke : 3.75"-8" Std. Hopper: Rotary. Cycle Time : 1/3 second. Weight : 1010 lb.

Adtech Model WR-2000

Rivet Diameter (max inches) Semi-Tabular : 0.25. Rivet Length (max inches) : 0.75. Throat Depth (inches) : 12. Stroke (inches) : 3. Dimensions (W x L x H inches) : 9 x 28 x 32.5. Weight (pounds) : 200

Milford Model 56

Rivet Diameter (max inches) Semi-Tabular : 0.125. Rivet Length (max inches) : 0.562. Throat Depth (inches) : 9. Stroke (inches) : 2. Dimensions (W x L x H inches) : 3.25 x 18.25 x 25.75. Weight (pounds) : 90

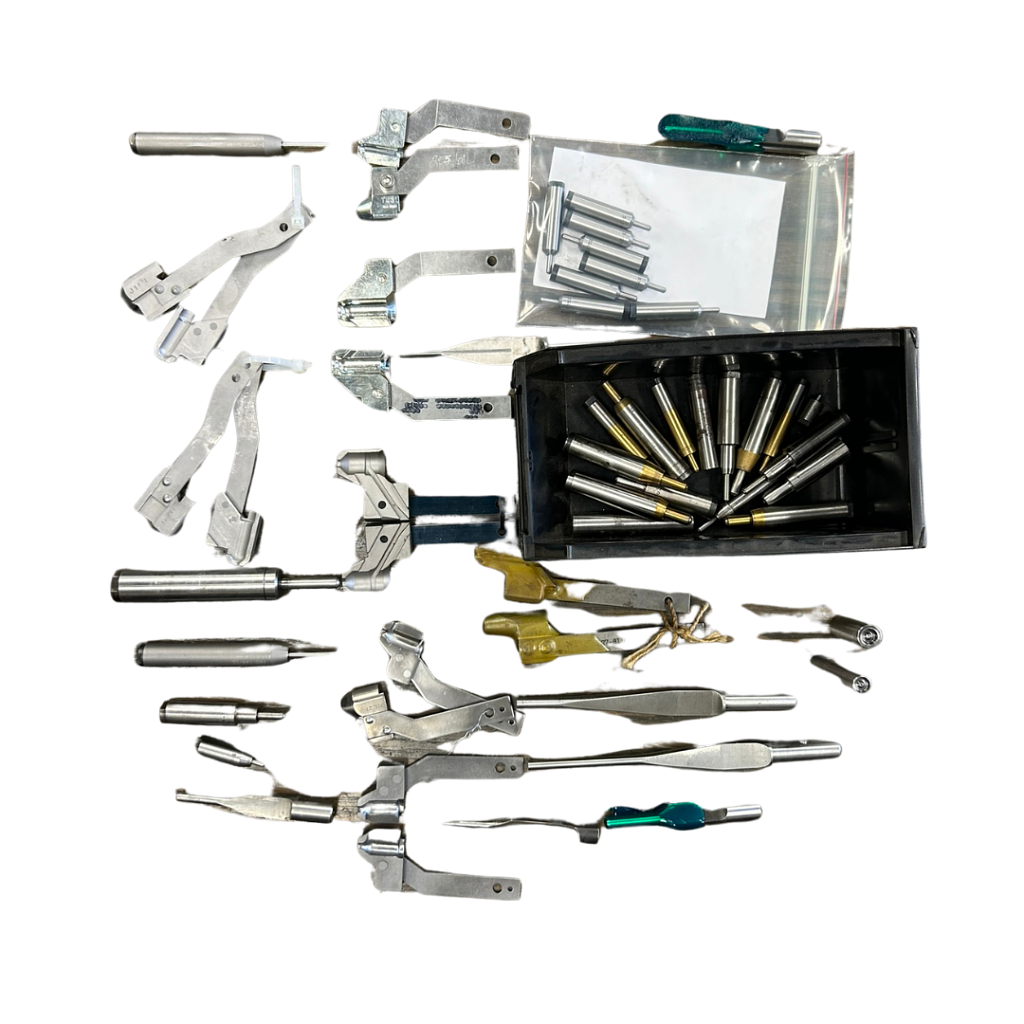

Tooling & Service

Welcome to B&B

Our company specializes in buying and selling all types of rivet machines, and we have over 500 models on the floor. We are proud to offer the widest selection of complete machines and tooling for each one. Our competitive pricing ensures that you get the best price for your purchase.

Whether you are looking to buy, sell, or rebuild your machine, we are here to help. Contact us today to learn more about our services and how we can assist you.

What Makes Us Different?

Widest Selection

Explore B&B Rivets' unparalleled selection, including trusted brands like Chicago, Milford, National, Townsend, and Orbital, to cater to all your riveting requirements.

Competitive Pricing

At B&B Rivets, we offer highly competitive pricing, providing substantial cost savings compared to sourcing directly from manufacturers.

professionals & experienced

With over four decades of experience, B&B Rivets is your trusted and professional partner, serving the industry with excellence since 1975.

customer satisfaction

At B&B Rivets, our unwavering commitment to customer satisfaction drives everything we do, ensuring that your needs are not only met but exceeded at every turn.
