Chicago 912

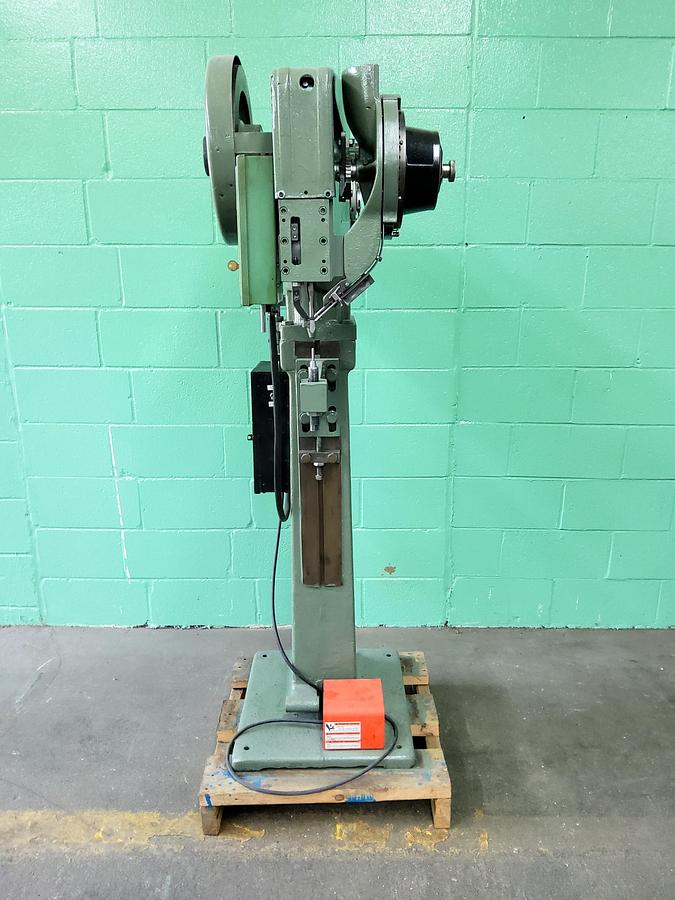

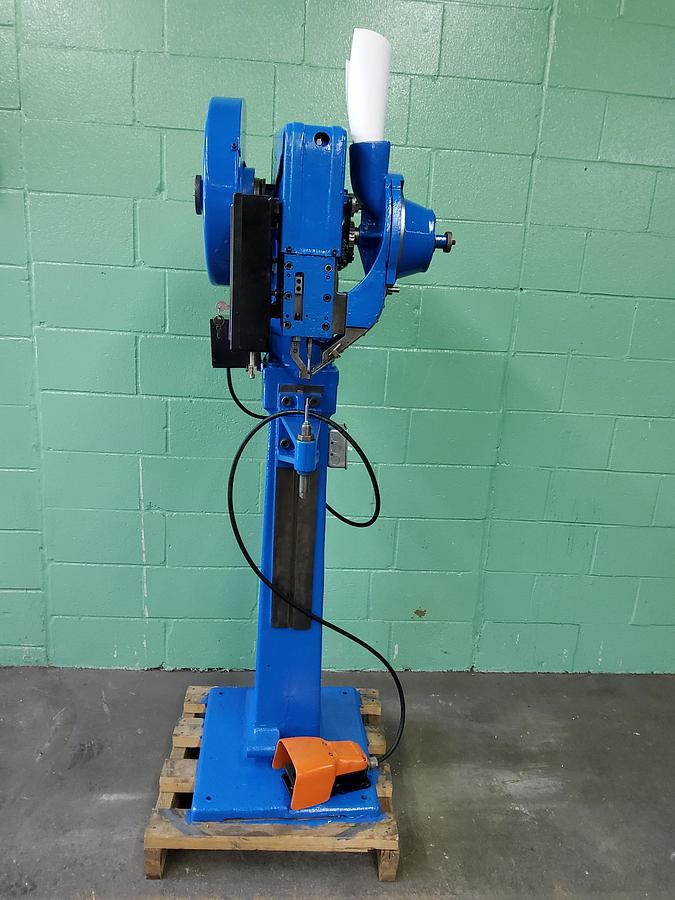

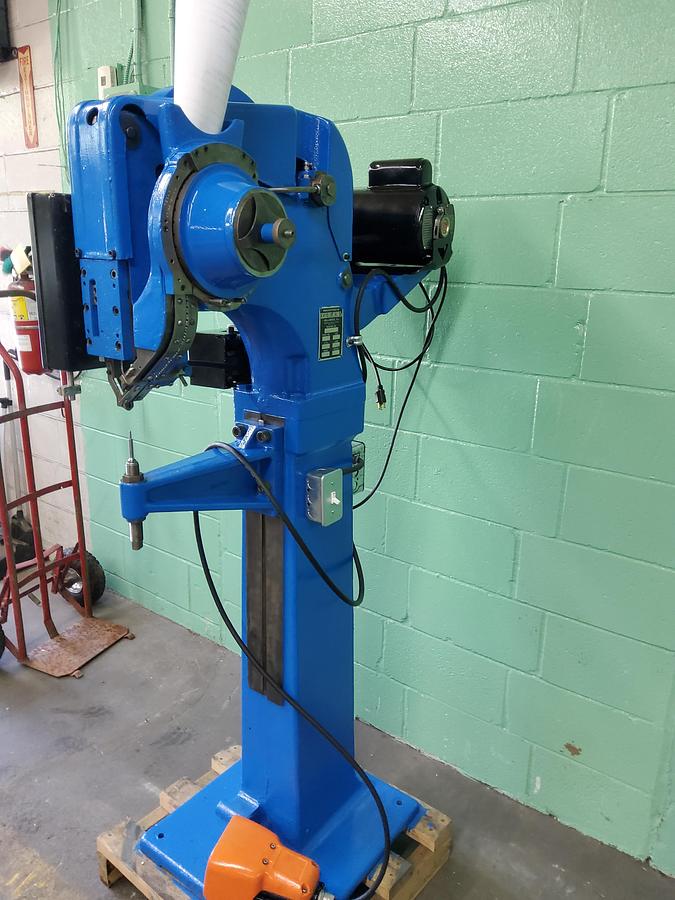

CHICAGO RIVET MACHINE Model 912

Rivet Machine

Single spindle, mechanical riveter on a pedestal with rotary hopper feed system.

Max Rivet Capacity: 3/16” diameter, up to 15/16” long tubular Stroke: 2.50" Throat: 12.00” Motor: 1/3 HP, 1140 RPM Work Height: 42.00” Trip: Electric solenoid with roller clutch Floor Space (L x W x H): 27" x 33" x 70.5" Power Requirements: 120 volt Weight: 575 lbs, crated 675 lbs
